Beelink GT-King Pro

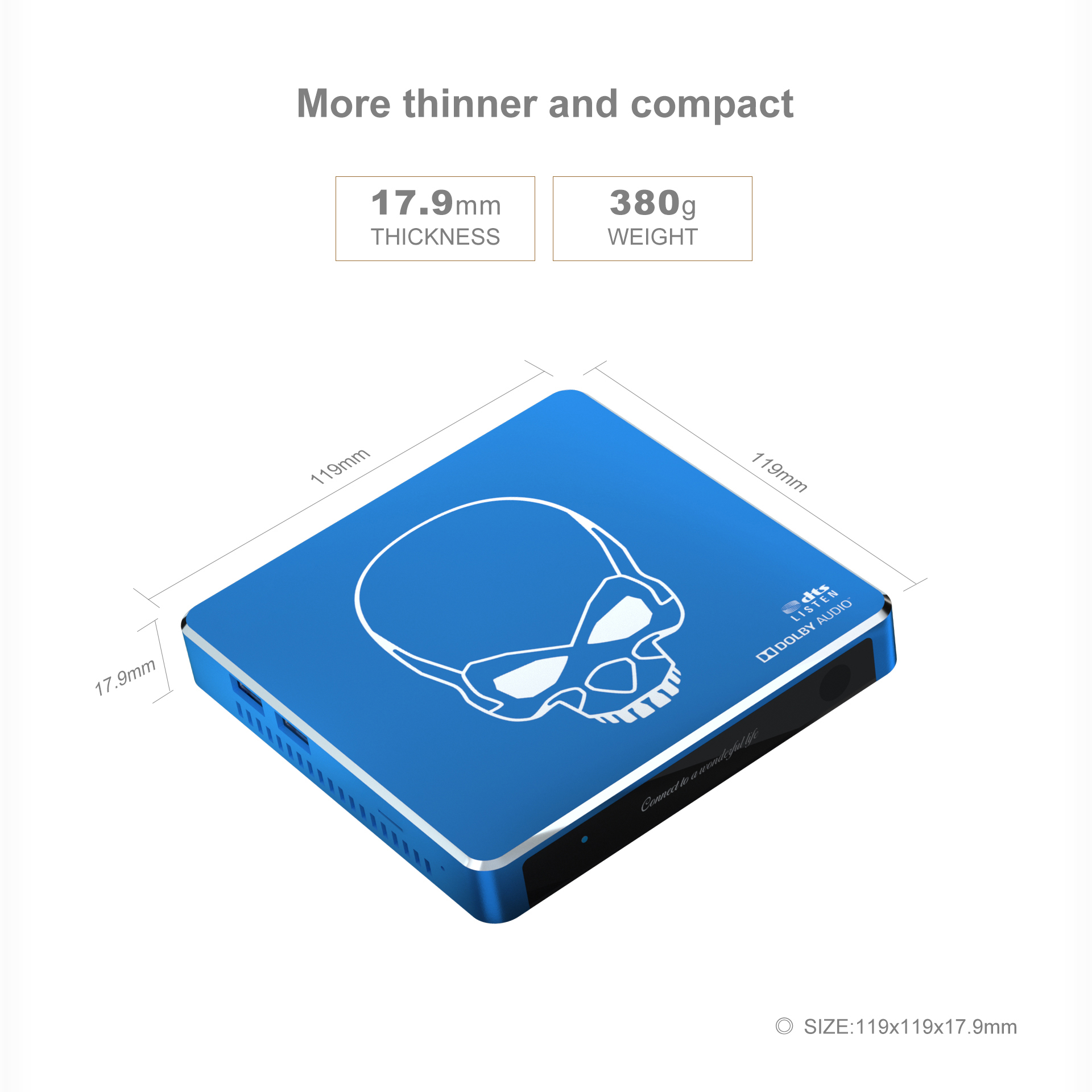

Dimension

119mm*119mm*17.9mm

Weight

Only Device 0.38 kg

With Accessories     kg

CPU

S922X-H Quad-core ARM Cortex-A73 and dual-core ARM Cortex-A53 processor

Graphics

Hexa-core ARM G52 MP6 Graphics

Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders

Support multi-video decoder up to 4Kx2K@60fps+1x1080P@60fps

Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding

H.265/HEVC Main/Main10 profile @ level 5.1 High-tier; up to 4Kx2K @ 60fps

VP9 Profile-2 up to 4Kx2K@60fps

H.265 HEVC MP-10@L5.1 up to 4Kx2K@60f

AVS2-P2 Profile up to 4Kx2K@60fps

H.264 AVC HP@L5.1 up to 4Kx2K@30fps

H.264 MVC up to 1080P@60fps

MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)

WMV/VC-1 SP/MP/AP up to 1080P@60fps

AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps

MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)

MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)

RealVideo 8/9/10 up to 1080P@60fps

Display

HDMI 2.1 output up to 4K@75Hz

HDMI 3D video formats

HDMI HDCP 2.2

Memory

4GB （DDR4）

Storage

64GB（eMMC）

Extended USB Mechanical Hard Disk 2.5/3.5inch 4TB Storage

Extended Storage SD card

Network

2T2R WIFI IEEE 802.11 a/b/g/n/ac 2.4G 5.8G

LAN 1000M

Bluetooth 4.1

Interface

USB3.0

3* USB Port

USB2.0

1* USB Port

HDMI

1*HDMI A Type Port

RJ45

1*RJ45 (1000Mbps)

Audio output

1*Headphone jack,3.5mm

SD Card

1* SD card Port

DB9

1*RS232 port

DC-in

1*DC in Port

Remote control

Standard Infrared Remote（IR）

Extended BT Remote

LED display

Green LED display

Upgrade OS

1* Upgrade button

Software OS

Android 9.0

Adapter

12V-2A 24W Certification

Input: 100-240V~50/60Hz , Output: 12V 2A

Work Environment

-10°C--45°C，30%--90%Humidity

Storage Environment

-20°C--60°C，10%--90% Humidity

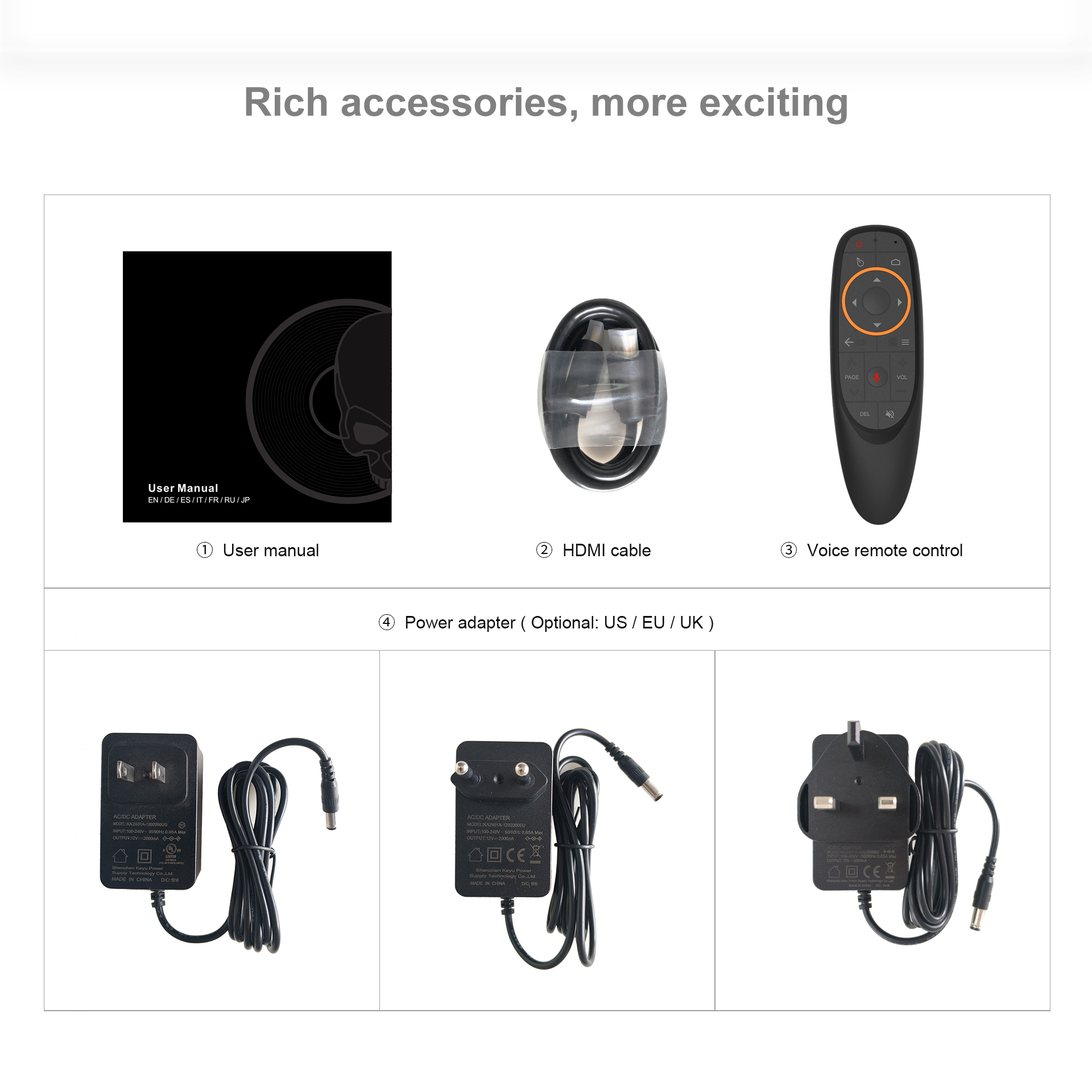

Accessories

1*Adapter 12V 2A

1*HDMI Cable 80CM

1*Manual
