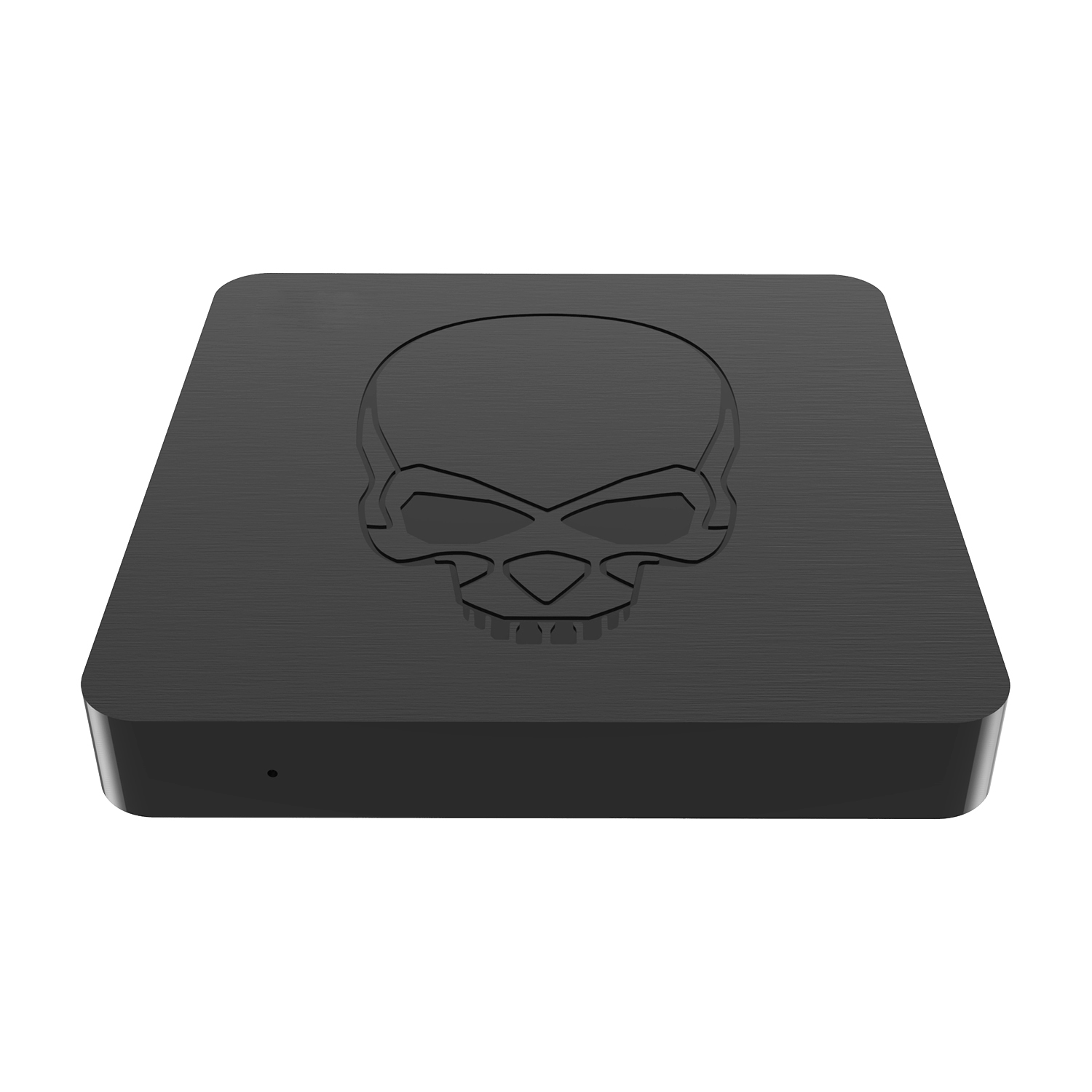

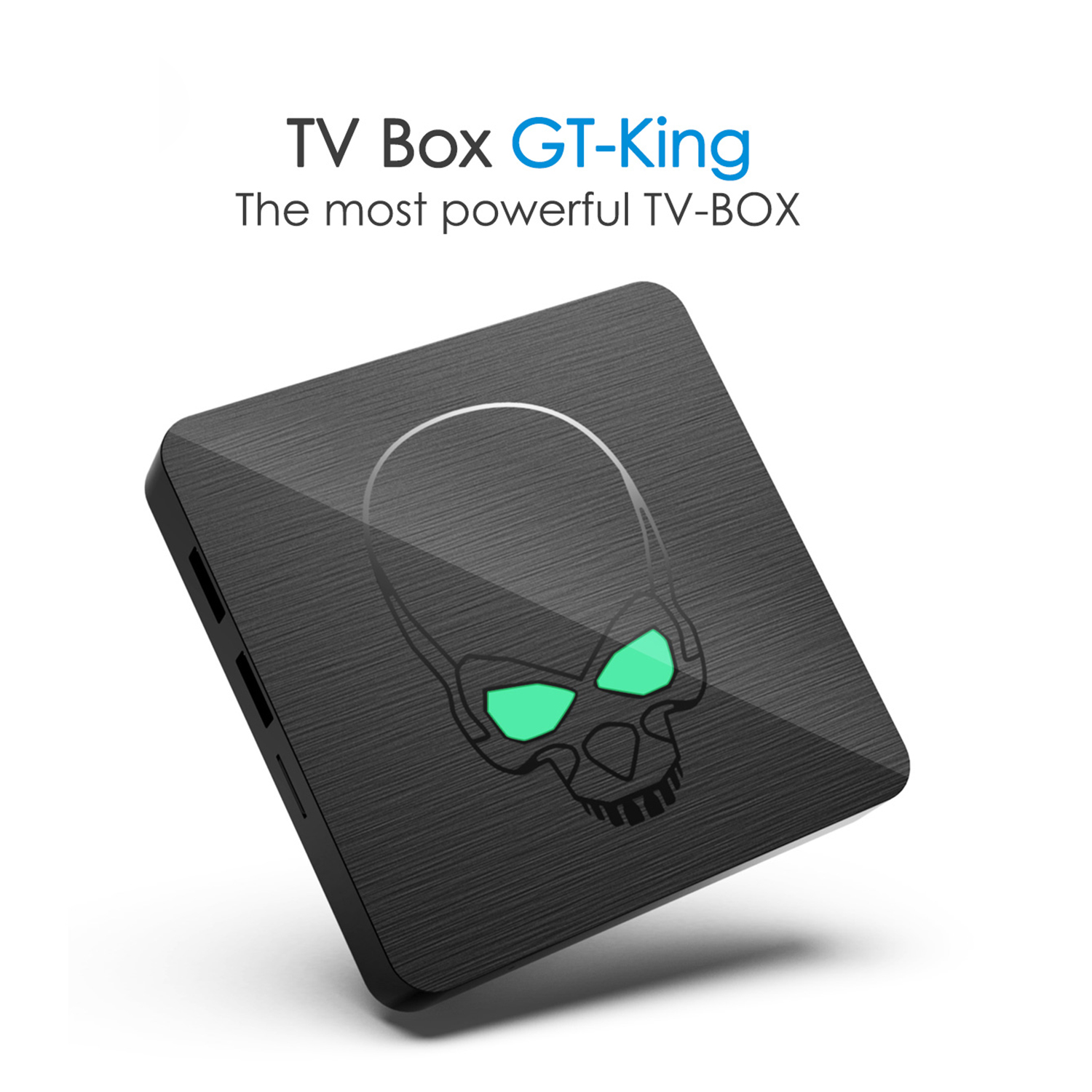

GT-King S922X 4+64GB

TV BOX_GT-King S922X

ABOUT THIS ITEM

Support the installation of the Android 9.0 system!

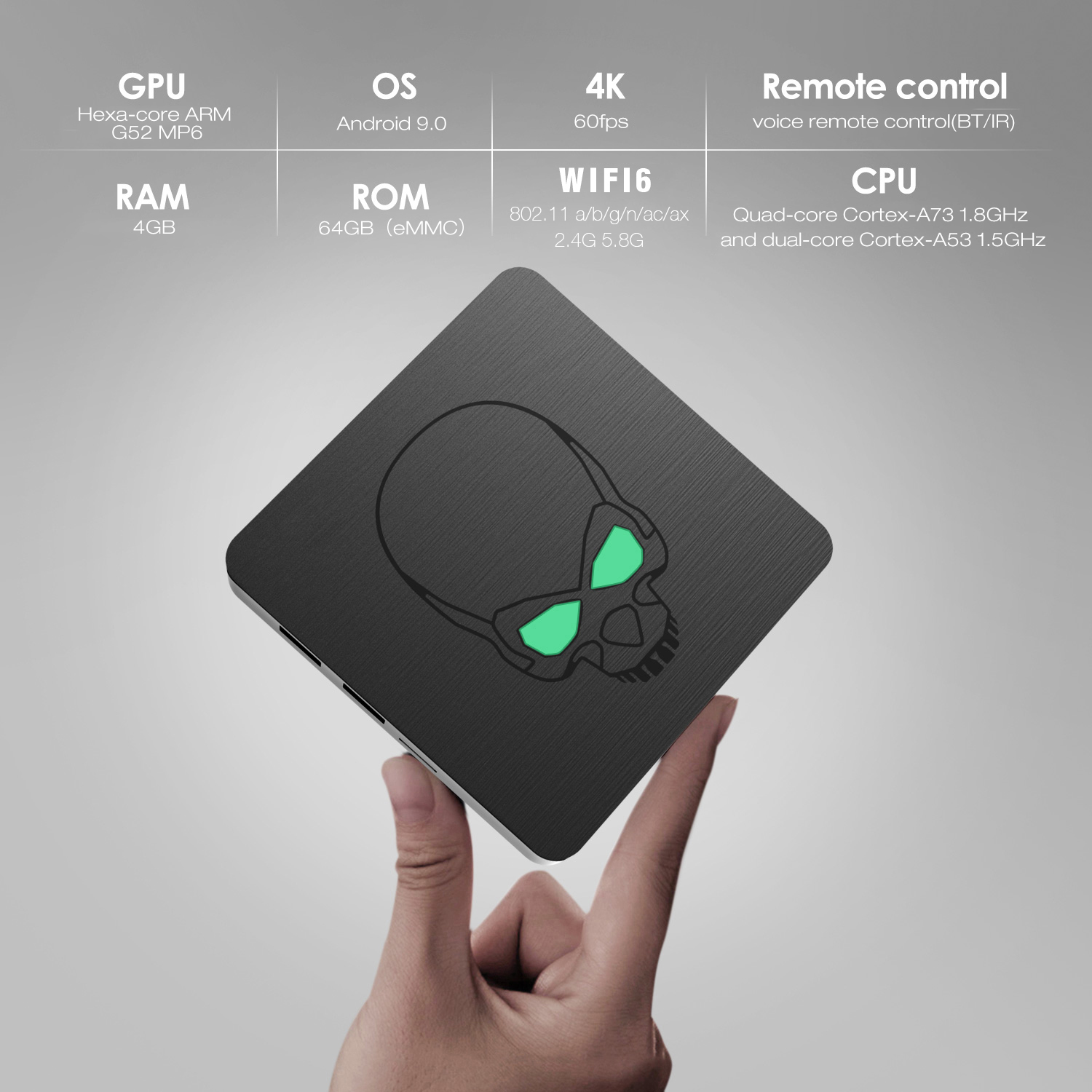

Main Features

● Android 9.0 operation system

● Amlogic S922X, quad-core ARM Cortex-A73 and dual-core ARM Cortex-A53 processor

● 4GB LPDDR4, support high-definition video display smoothly

● 64GB storage allows for massive software download

● Support 2.4G voice remote control

● Support 4K 60fps

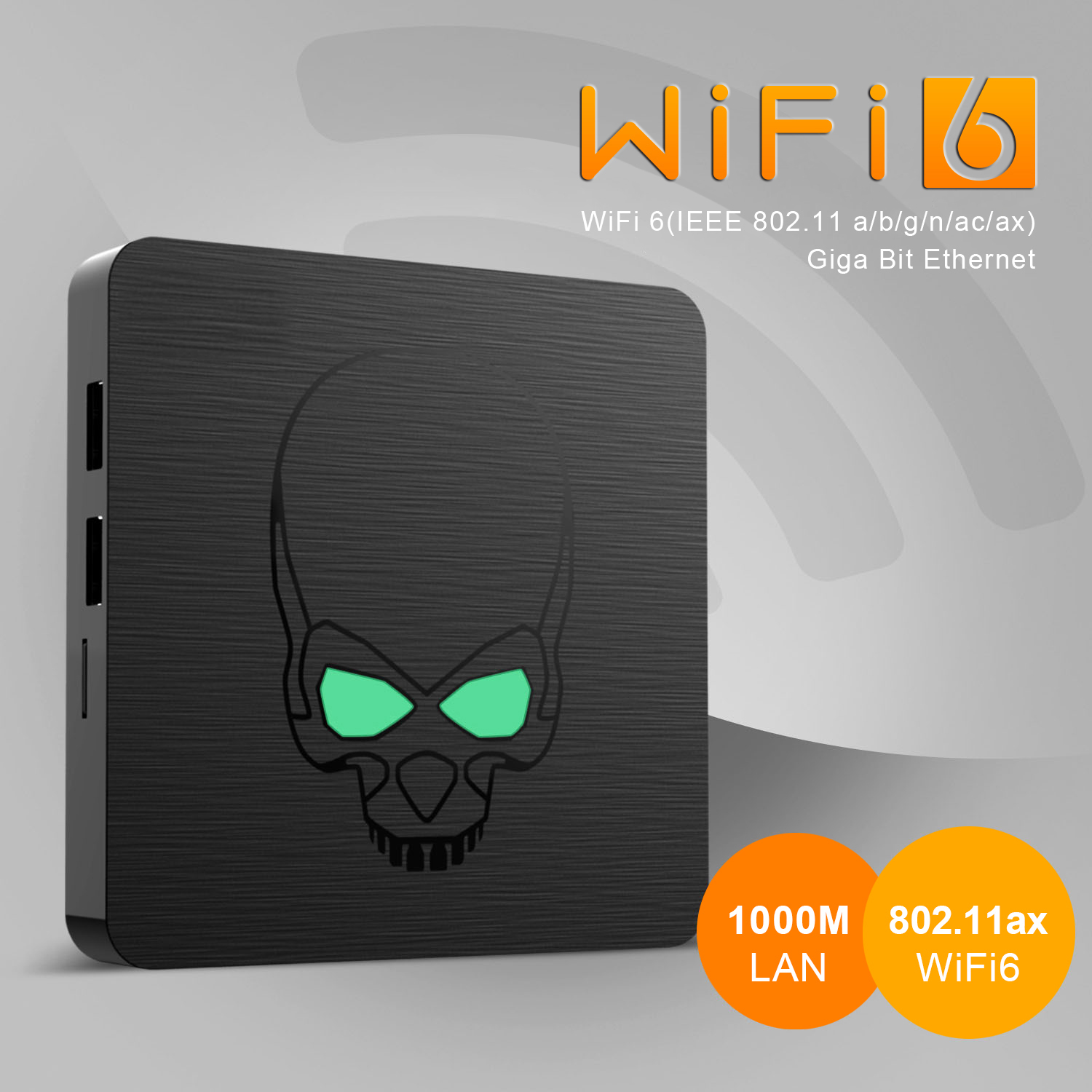

● 2.4GHz + 5.8GHz, dual WiFi antenna design, stronger WiFi signal and transfer speed

● LAN 1000Mbps

● 2 x USB3.0 interface

【Can be deeply customized】AZW Technology Co., Ltd. was established in 2011, is a national high-tech enterprise with nearly 10 years of experience in product development and production, the production of products loved by domestic and foreign users, accept OEM and ODM.

Overview Specification

Item	Description

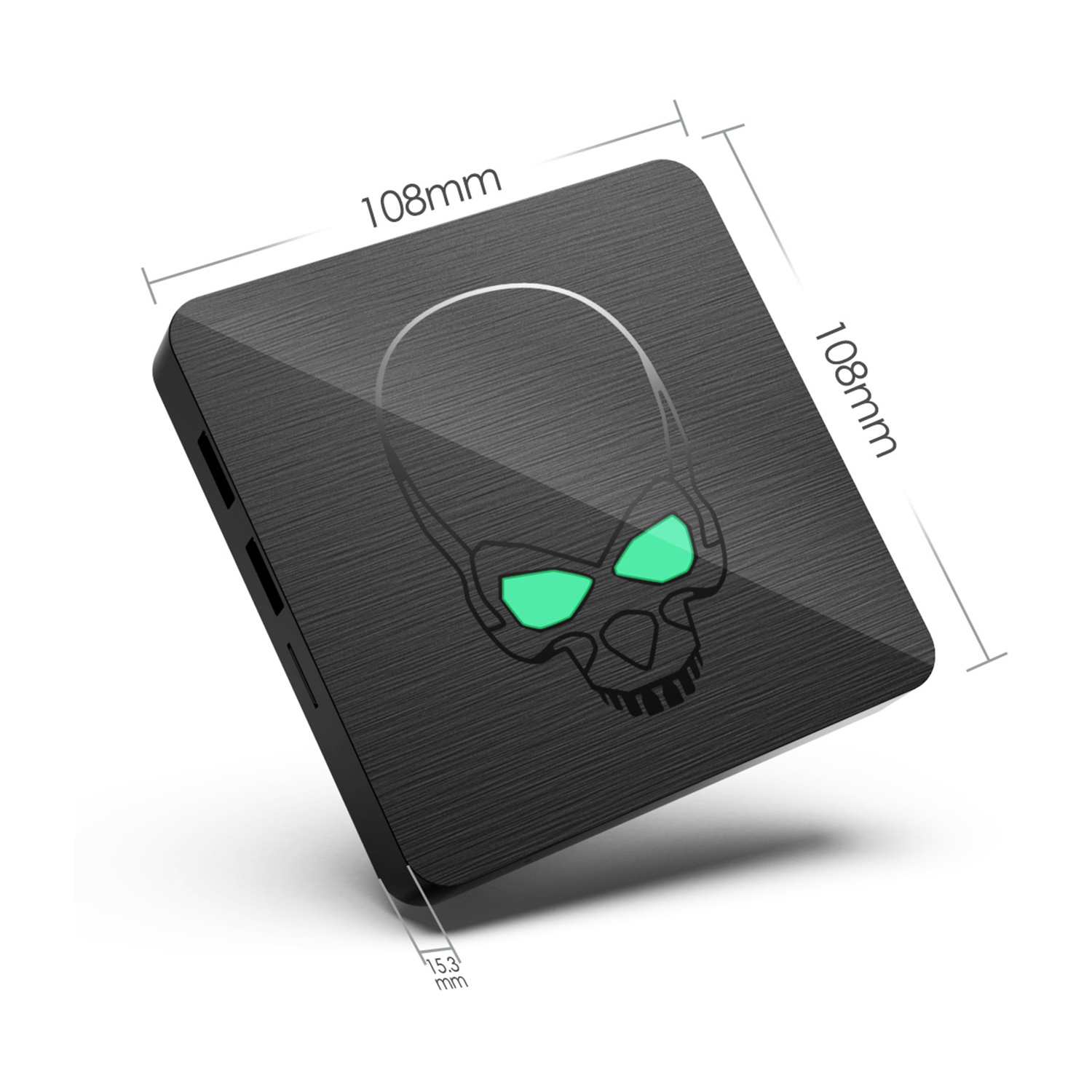

Dimension	108mm108mm16mm
Weight	Only Device 0.19 kg
CPU	S922X Quad-core ARM Cortex-A73 and dual-core ARM Cortex-A53 processor

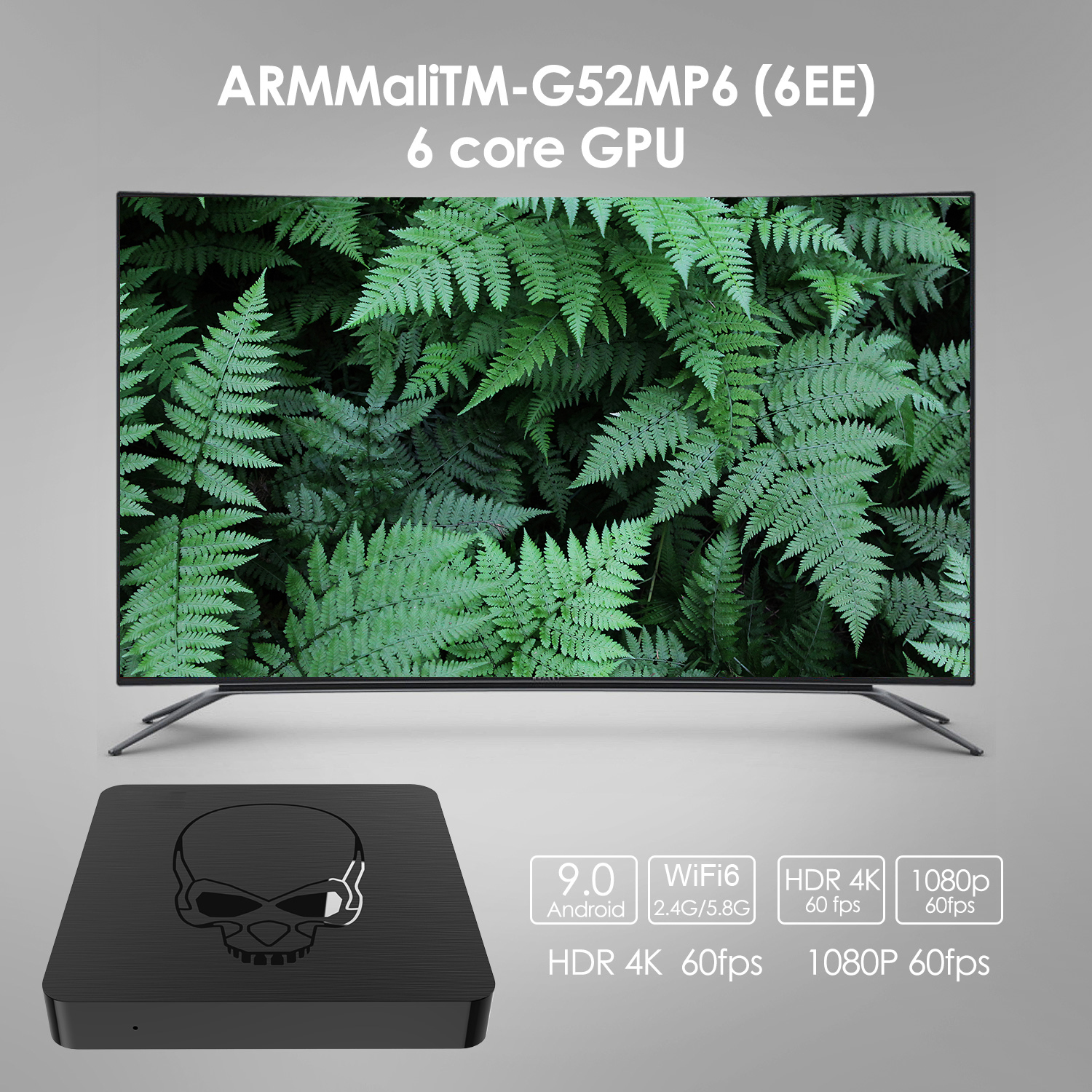

Graphics	Hexa-core ARM G52 MP6 Graphics
	Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders
	Support multi-video decoder up to 4Kx2K@60fps+1x1080P@60fps
	Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding
	H.265/HEVC Main/Main10 profile @ level 5.1 High-tier; up to 4Kx2K @ 60fps
	VP9 Profile-2 up to 4Kx2K@60fps
	H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps
	AVS2-P2 Profile up to 4Kx2K@60fps
	H.264 AVC HP@L5.1 up to 4Kx2K@30fps
	H.264 MVC up to 1080P@60fps
	MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
	WMV/VC-1 SP/MP/AP up to 1080P@60fps
	AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
	MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
	MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
	RealVideo 8/9/10 up to 1080P@60fps
Display	HDMI 2.1 output up to 4K@75Hz
	HDMI 3D video formats
	HDMI HDCP 2.2
	AV(CVBS) 480i/576i
Memory	4GB （DDR4）
Storage	64GB（eMMC）
	Extended USB Mechanical Hard Disk 2.5/3.5inch 4TB Storage
	Extended Storage TF card
Network	2T2R WIFI IEEE 802.11 a/b/g/n/ac 2.4G 5.8G
	LAN 1000M
	Bluetooth 4.1

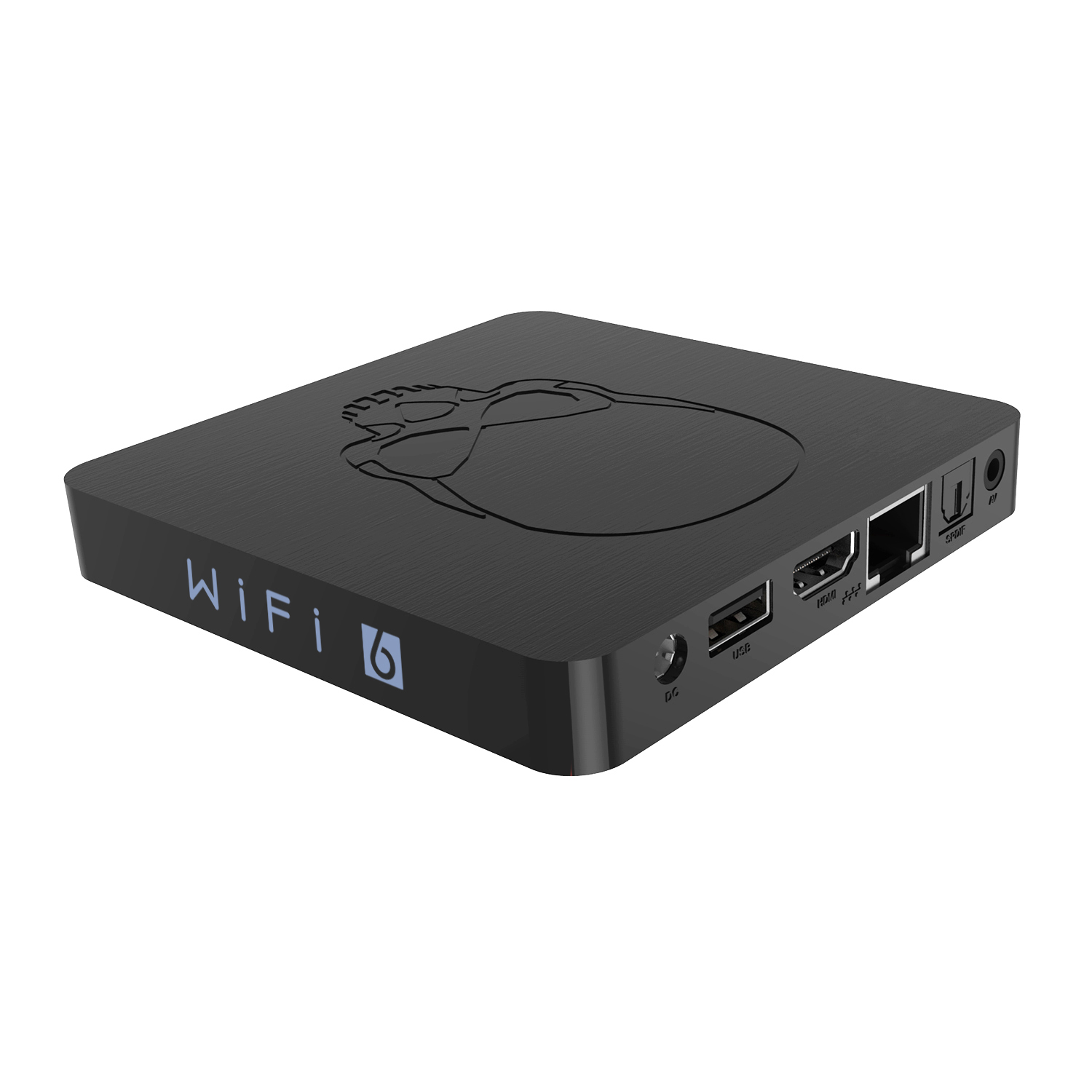

Interface	USB3.0	2* USB Port
	USB2.0	1* USB Port
	HDMI	1*HDMI A Type Port
	RJ45	1*RJ45 (1000Mbps)
	AV(CVBS)	1*Headphone microphone jack
	TF Card	1* Micro SD card Port
	DC-in	1*DC in Port
Remote control	Standard Infrared Remote（IR）
	Extended BT Remote
LED display	Green LED display
Upgrade OS	1* Upgrade button
Software OS	Android 9.0
Adapter	12V-1.5~2A 18W Certification
	Input: 100-240V~50/60Hz , Output: 12V 1.5~2A
Work Environment	-10°C--45°C，30%--90% Humidity
Storage Environment	-20°C--60°C，10%--90% Humidity

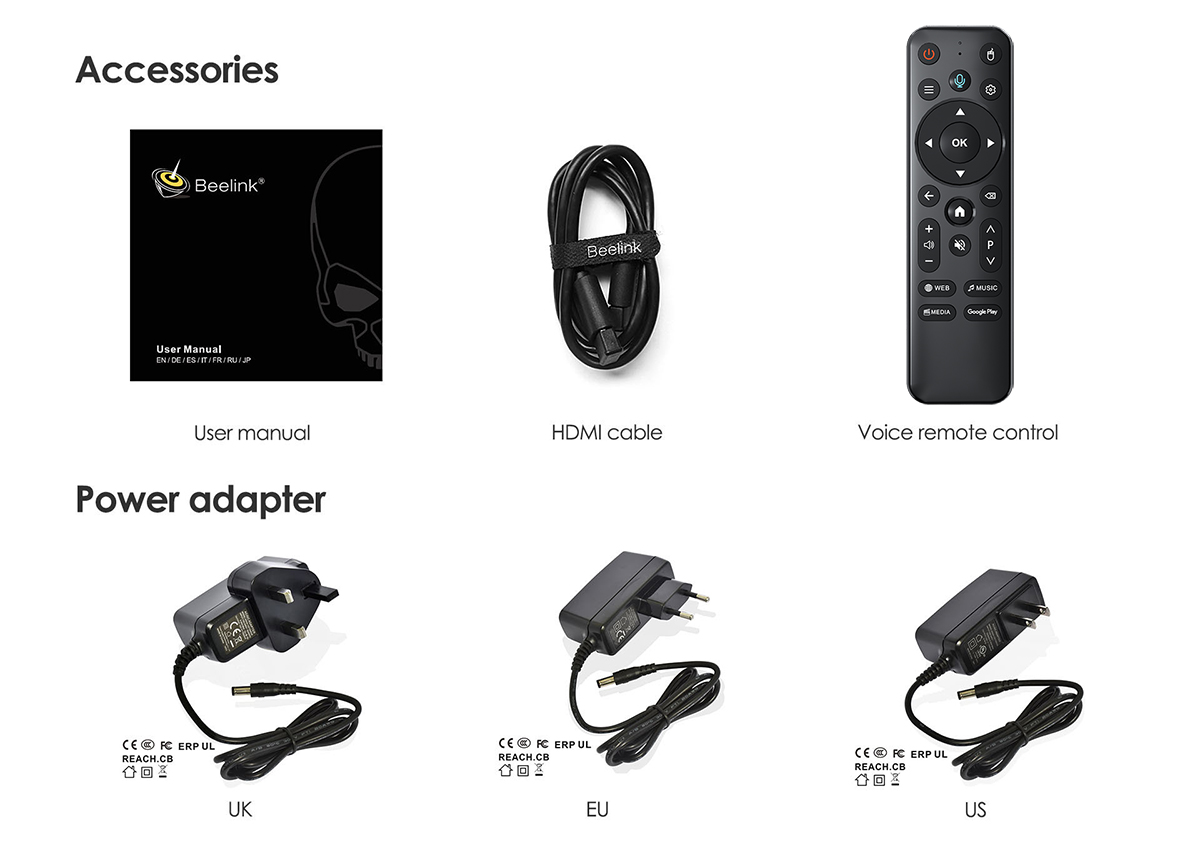

Accessories	1*Adapter 12V 1.5A
	1*HDMI Cable 80CM
	1*Manual
